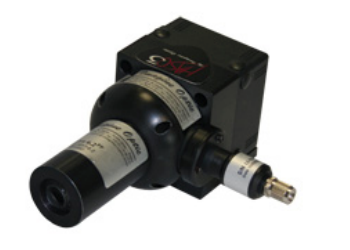

HASO R-Flex 系列波前分析系统带有一个自准值仪,一个功率可调标准光源和可更换聚焦模块。给用户提供一个多功能的光学系统波前分析解决方案。其透射波前检测精度可达λ/100, 折返波前检测精度可达λ/200。
特点:
对振动和气流扰动不敏感, 确保用户实现精密测量,满足用户对可靠性和重复性的严格要求。此外,如测量的畸变接近衍射极限,精度还可进一步提高。
由于不同的用户系统要求不同,我们提供F值从2到30的聚焦模块供用户选择。用户也可根据自己系统的要求定制匹配的聚焦模块。

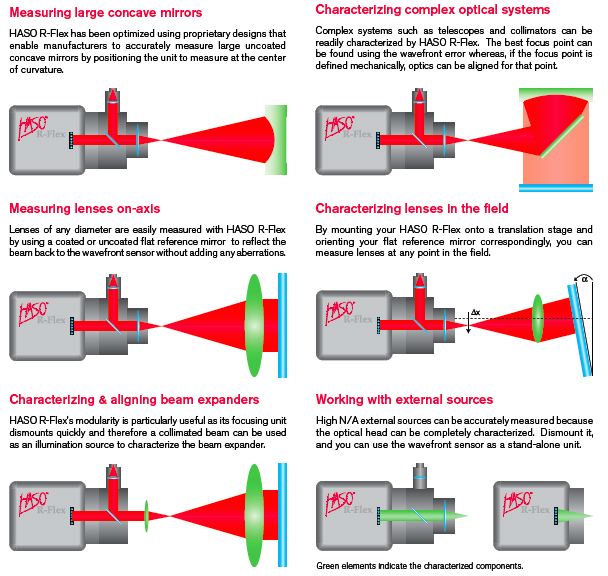

HASO R-Flex系统输出发散光束,这使得测量大口径光学器件或系统十分简易,如下图所示。
HASO R-Flex 系统配有HASOv3 波前分析软件,可以时时显示波前像差,从而用户可以在系统装调过程中时时掌握波前情况,从而判断是否达到最佳位置。
系统体积小巧,不仅可以在轴检测,也可以离轴检测。
HASO R-Flex 32 |
Pupil size (mm²) |
Sensitivity rms1 |
Relative Accuracy rms1 |
Sampling points |
Weight |
Size (w/h/d mm) |
4.9 x 6.1 |
3 nm |
4 nm |
32 x 40 |
0.7 Kg |
114 x 70 x 98 |
|
Focusing Modules |
Focal length (mm)2 |
f-number |
WFE rms3 (nm) |
Working distance (mm)4 |
Pupil imaging5 |
Pupil distortion |
MOD32-2 |
9 |
2.0 |
20 |
1.2 |
NO |
1.0% |
MOD32-4 |
19 |
4.0 |
150 |
-2.3 |
YES |
3.0% |
MOD32-6.4 |
31 |
6.4 |
60 |
1.9 |
YES |
1.5% |
MOD32-10 |
45 |
10.0 |
40 |
-1.0 |
YES |
0.7% |
MOD32-12.5 |
60 |
12.5 |
30 |
11.5 |
YES |
0.3% |
MOD32-16 |
75 |
16.0 |
20 |
21.7 |
YES |
0.2% |
MOD32-24 |
117 |
24.0 |
20 |
29.0 |
YES |
0.2% |
MOD32-30 |
150 |
30.0 |
20 |
144.5 |
YES |
0.2% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HASO R-Flex 76 |
Pupil size (mm²) |
Sensitivity rms1 |
Relative Accuracy rms1 |
Sampling points |
Weight |
Size (w/h/d mm) |
8.7 x 11.4 |
3 |
4 |
76 x 100 |
1.6 Kg |
80 x 194 x 244 |
|
Focusing Modules |
Focal length (mm)2 |
f-number |
WFE rms3 (nm) |
Working distance (mm)4 |
Pupil imaging5 |
Pupil distortion |
MOD76-3 |
26 |
3.0 |
30 |
10 |
NO |
1.5% |
MOD76-8.7 |
75 |
8.7 |
100 |
9 |
YES |
1.8% |
MOD76-13.4 |
115 |
13.4 |
80 |
30 |
YES |
1.5% |
MOD76-17 |
146 |
17.0 |
60 |
65 |
YES |
1.0% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HASO R-Flex 128 |
Pupil size (mm²) |
Sensitivity rms1 |
Relative Accuracy rms1 |
Sampling points |
Weight |
Size (w/h/d mm) |
14.6 x 14.6 |
3 |
4 |
128 x 128 |
1.6 Kg |
80 x 194 x 270 |
|
Focusing Modules |
Focal length (mm)2 |
f-number |
WFE rms3 (nm) |
Working distance (mm)4 |
Pupil imaging5 |
Pupil distortion |
MOD128-2 |
26 |
2.0 |
60 |
10 |
NO |
4.0% |
MOD128-5.1 |
75 |
5.1 |
150 |
9 |
YES |
3.5% |
MOD128-7.9 |
115 |
7.9 |
100 |
30 |
YES |
2.5% |
MOD128-10 |
146 |
10.0 |
80 |
65 |
YES |
2.0% |
|
1: Can be divided by 2 if the optical system under test is characterized by double-pass method. 2: Focal length of the module. 3: WFE is the wavefront error at the output of the module for the largest included round pupil. 4: Distance between the focalization point and the mechanics (if negative, the focalization spot is inside the mechanics). 5: YES means that the microlenses are imaged at infinity by the module.
